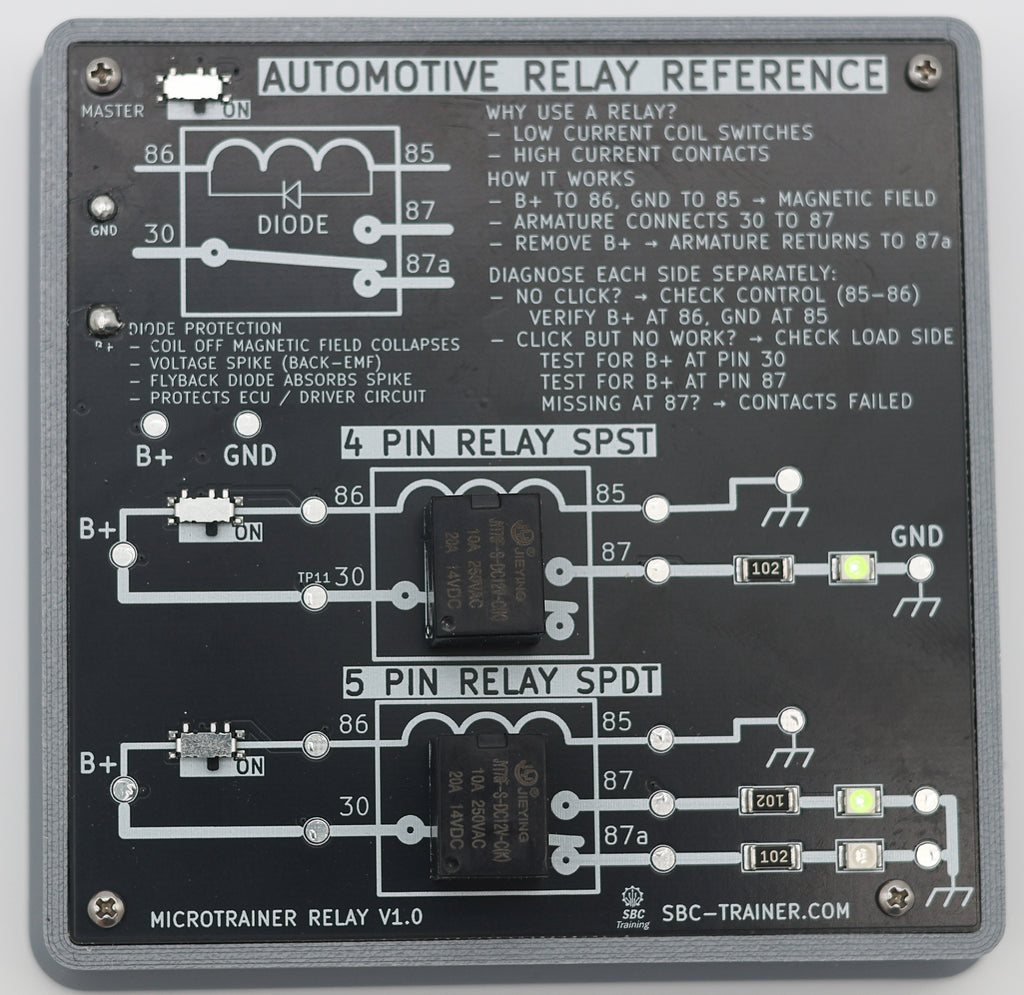

  • MicroTrainer Relay PCB front view - Automotive Relay Reference with 4-pin SPST and 5-pin SPDT relays

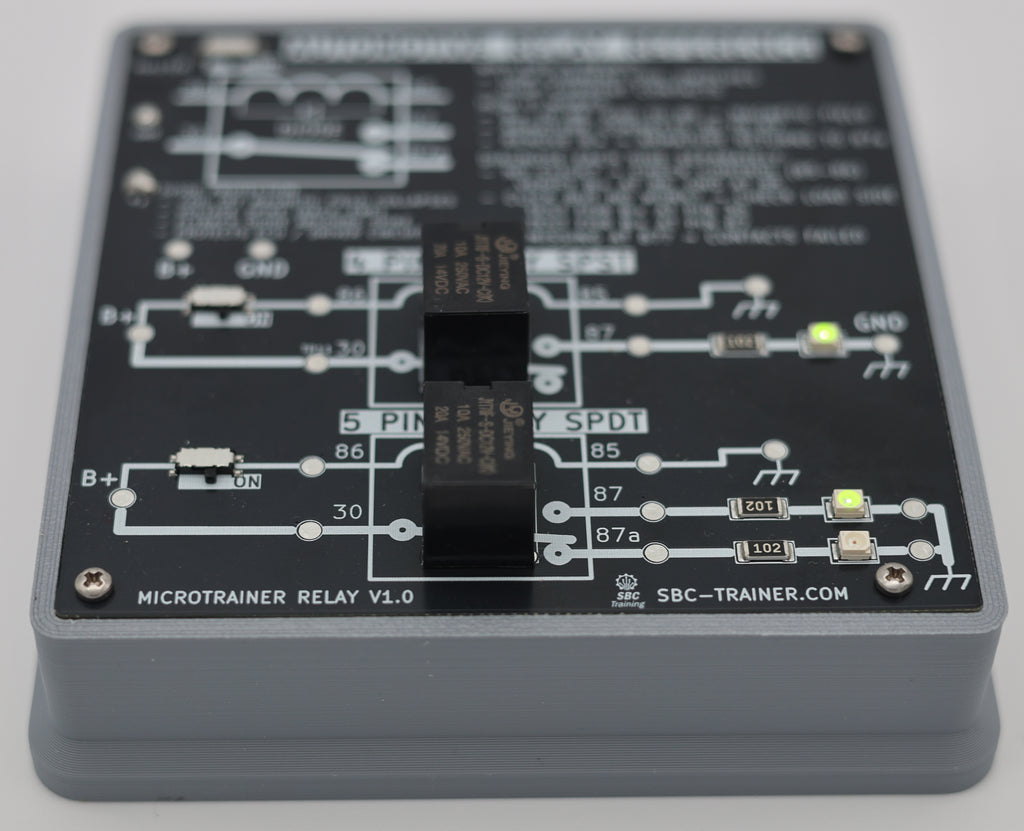

  • MicroTrainer Relay angled view showing 5-pin SPDT relay section with LEDs illuminated

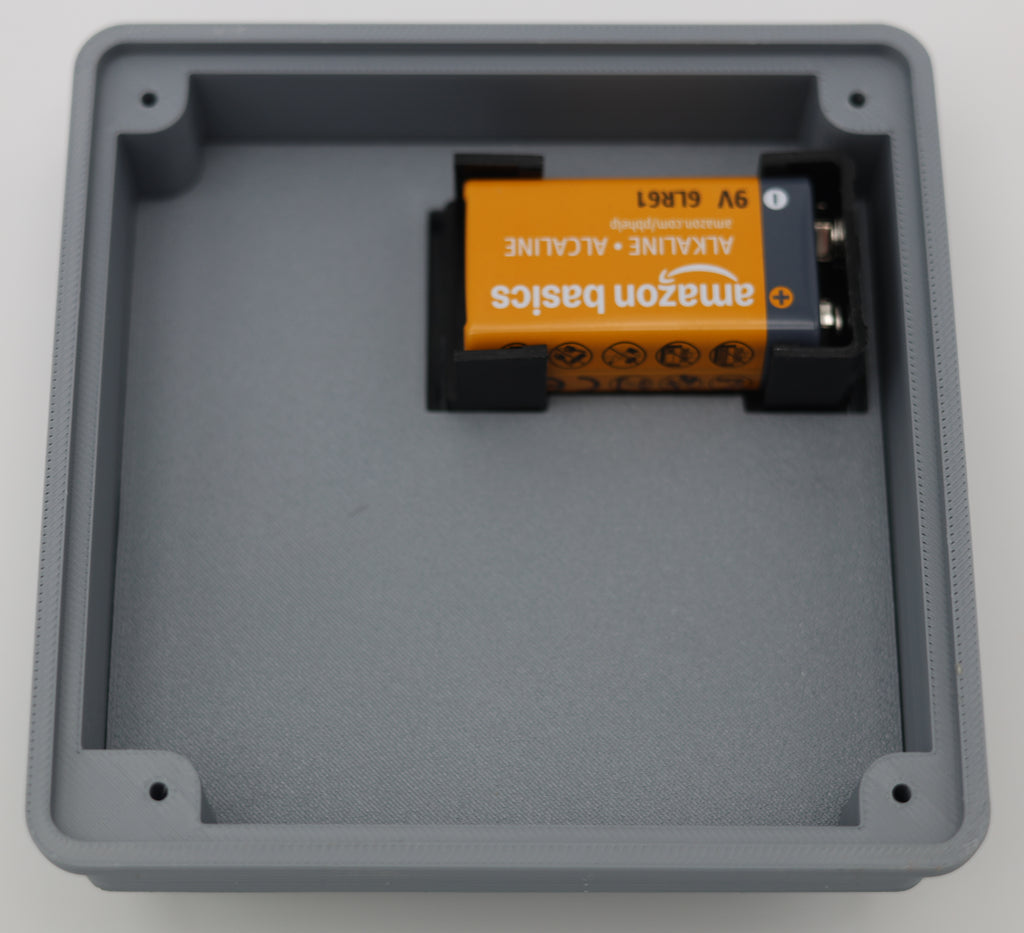

  • MicroTrainer Relay bottom view showing 9V battery compartment in 3D-printed base

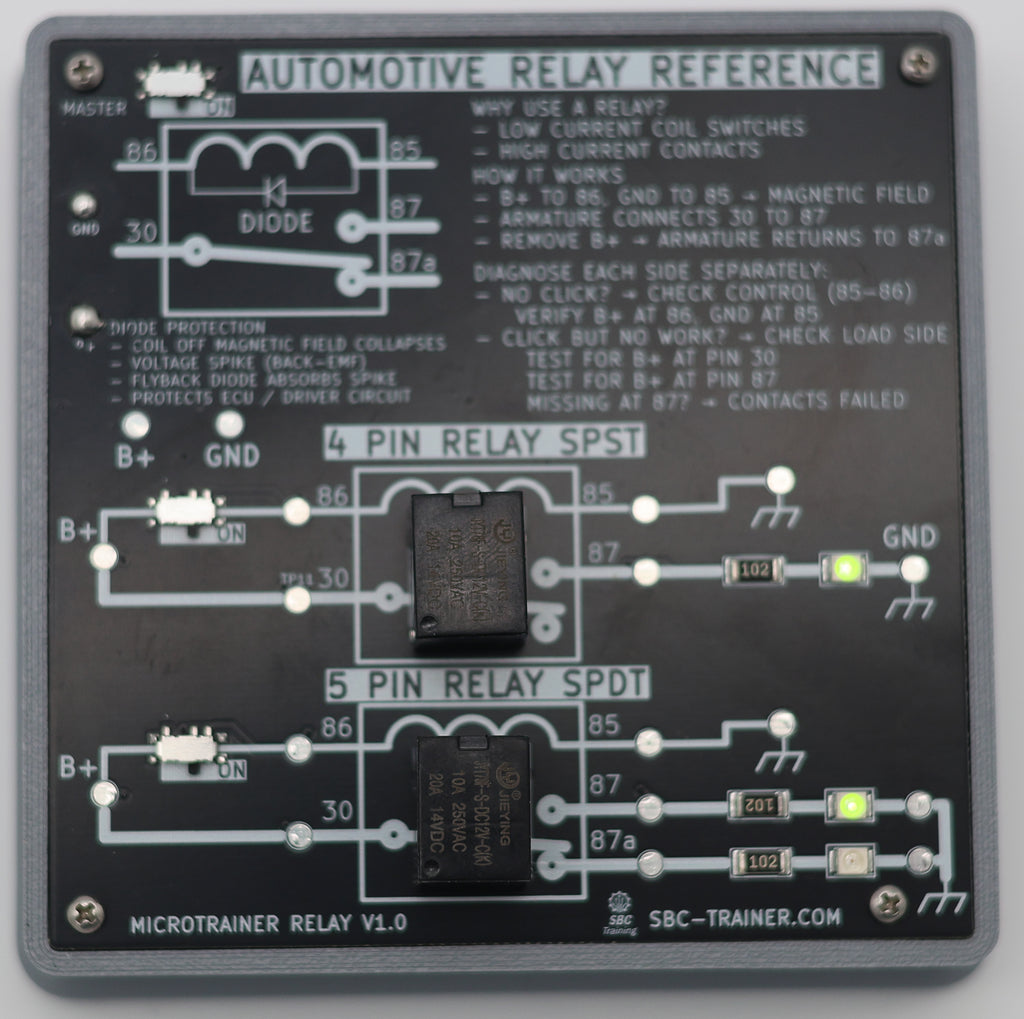

  • MicroTrainer Relay front angle view in 3D-printed gray base
  • MicroTrainer Relay PCB front view - Automotive Relay Reference with 4-pin SPST and 5-pin SPDT relays
  • MicroTrainer Relay angled view showing 5-pin SPDT relay section with LEDs illuminated
  • MicroTrainer Relay bottom view showing 9V battery compartment in 3D-printed base
  • MicroTrainer Relay front angle view in 3D-printed gray base
MicroTrainer Relay Basic Electrical Training System

MicroTrainer Relay Basic Electrical Training System

$39.00
Number of Units

The MicroTrainer Relay Card is a compact, hands-on training tool designed to help students understand how electromagnetic relays work in DC circuits. Perfect for classroom or lab environments, it introduces the foundational principles of relay operation, coil energization, and switched circuit control through real-world, measurable examples.

Each unit includes a populated PCB with relay components, a 9V battery holder, 9V battery, and a 3D-printed protective base.

For purchase orders, international shipping, or larger quantities, please contact scott@sbctrainingllc.com
